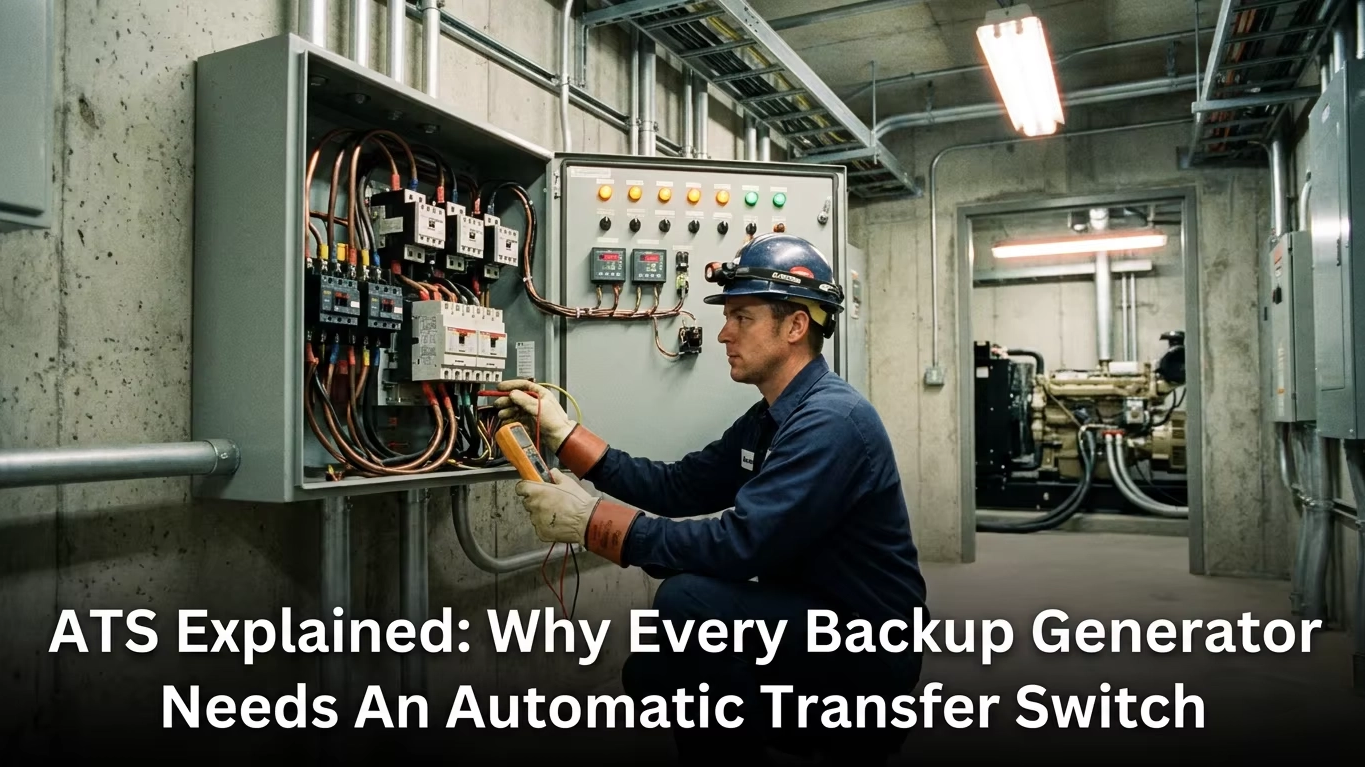

ATS Explained: Why Every Backup Generator Needs an Automatic Transfer Switch

A diesel generator without an Automatic Transfer Switch is like a fire extinguisher kept in a locked room. It can do the job — but by the time someone manually operates the system, the damage is already done.

For most commercial and industrial backup power applications, an ATS is not optional. It is the component that makes the difference between a generator that actually protects your operation and one that sits idle while your facility waits for someone to flip a switch.

This guide explains what an ATS does, how it works, the key types and their differences, and what to specify when purchasing a generator with automatic transfer capability. Whether you are buying a generator for a hospital, a data center, a hotel, or a commercial building, this is the information you need before placing your order.

What Is an Automatic Transfer Switch?

An Automatic Transfer Switch (ATS) is an electrical device that monitors your main utility power supply and automatically switches your load — your building, facility, or equipment — from the utility grid to your generator when grid power fails. When utility power is restored, the ATS switches back automatically and shuts down the generator.

The ATS is the intelligence layer between your generator and your building. Without it, a power failure requires someone to manually start the generator, manually disconnect the utility supply, and manually connect the generator output — a process that takes several minutes under ideal conditions, and much longer in a real emergency at night or during a storm.

  Key point: the generator produces the power. The ATS delivers it to your building safely and automatically. Both components are essential. A generator without an ATS is a manual backup system. A generator with an ATS is a true automatic backup power system.

How an ATS Works: The Switching Sequence Explained

Understanding the switching sequence helps you specify the right ATS for your application and explain the system to your customers.

  Phase 1: Normal Operation

Under normal conditions, your building is powered by the utility grid. The ATS continuously monitors the incoming voltage and frequency of the utility supply. All loads — lighting, HVAC, equipment, data systems — are running on grid power. The generator is off.

  Phase 2: Power Failure Detection

The moment utility voltage drops below the ATS threshold — typically when voltage falls below 80% of nominal for more than 1–3 seconds — the ATS detects a power failure. This threshold is configurable and should be set to distinguish between a genuine outage and normal voltage fluctuations.

The ATS immediately sends a start signal to the generator. This signal activates the engine control module, which initiates the starting sequence: pre-heating (for diesel engines in cold conditions), cranking, and fuel injection.

  Phase 3: Generator Start and Stabilisation

The generator starts and runs up to operating speed — typically 1,500 rpm for 50Hz systems or 1,800 rpm for 60Hz systems. The ATS monitors the generator output: it waits until the generator is producing stable voltage and frequency within acceptable tolerances before proceeding. This stabilisation period typically takes 10–30 seconds depending on the generator size and engine type.

This delay is critical. Connecting loads to an unstable generator — before voltage and frequency are stable — can damage sensitive equipment and cause the generator to trip on overload.

  Phase 4: Load Transfer

Once the generator output is stable and within specification, the ATS executes the transfer: it disconnects the load from the utility supply and connects it to the generator output. The total time from utility failure to load transfer is typically 15–45 seconds for a standard automatic system.

This is the moment your facility switches to generator power. For most commercial applications, a 15–45 second gap is acceptable. For critical applications — hospitals, data centers, telecommunications — this gap may need to be shorter, requiring either a faster-starting generator or an uninterruptible power supply (UPS) bridging the gap.

  Phase 5: Utility Restoration and Retransfer

When utility power is restored, the ATS detects stable utility voltage and frequency. It waits for a configurable confirmation period — typically 1–5 minutes — to verify that the restoration is stable and not a momentary fluctuation. Once confirmed, the ATS transfers the load back to the utility supply and sends a stop signal to the generator.

The generator runs unloaded for a cooldown period — typically 3–5 minutes — before shutting down. This cooldown prevents thermal stress on the engine and turbocharger from shutting down immediately under high temperature.

Open Transition vs Closed Transition ATS: What Is the Difference?

This is the most important technical distinction in ATS specification, and the one most frequently misunderstood by buyers.

  Specification guidance: for the vast majority of commercial and industrial applications in developing markets — hotels, office buildings, factories, warehouses, construction sites — open transition ATS is the correct and cost-effective choice. Closed transition is warranted only when the load includes equipment that cannot tolerate even a 200ms power gap.

Manual Transfer Switch vs Automatic Transfer Switch: When to Use Each

A manual transfer switch (MTS) performs the same electrical function as an ATS — isolating the utility supply and connecting the generator — but requires a human operator to do so. The question of which to specify depends on the application, not just the budget.

Use a Manual Transfer Switch when:  The facility has 24/7 on-site staff capable of operating the transfer; the loads are non-critical and can tolerate a 5–15 minute delay before generator power; the installation is temporary (construction site, event power); or the budget is severely constrained and the application genuinely does not require automatic response.

Use an Automatic Transfer Switch when:  The facility is sometimes unoccupied or lightly staffed; the loads include refrigeration, medical equipment, IT systems, security, or life safety systems; the customer's business cannot afford even a short uncontrolled outage; or the generator is part of a contractual power reliability commitment.

  The commercial reality: most business buyers purchasing a backup generator for their facility expect it to work automatically — without someone needing to be present to operate it. Specifying an MTS where an ATS is the appropriate choice is a common mistake that damages the end user's confidence in both the generator and the supplier.

What to Specify When Ordering a Generator with ATS

When requesting a quotation for a diesel generator with integrated ATS, provide the following information to ensure you receive the correct configuration:

  Electrical Specifications

· Rated generator output: kW and kVA

· Voltage: 380V / 400V / 415V (three-phase) or 220V / 230V (single-phase)

· Frequency: 50Hz or 60Hz

· Phase configuration: single-phase or three-phase

· ATS current rating: must match or exceed the generator rated current (e.g. a 100kW / 400V / 3-phase generator produces approximately 144A — the ATS must be rated at minimum 160A)

  Transfer Parameters

· Transfer type: open transition (standard) or closed transition (critical loads)

· Transfer delay: time from outage detection to generator start signal (typically 3–10 seconds)

· Retransfer delay: time to confirm utility restoration before switching back (typically 1–5 minutes)

· Generator cooldown period: engine run-on time after retransfer (typically 3–5 minutes)

  Control and Monitoring Features

· Remote monitoring: can the ATS status be monitored remotely via SCADA, GSM, or Ethernet?

· Manual override: can the operator manually force transfer in either direction?

· Event logging: does the ATS record transfer events, utility failure timestamps, and alarm history?

· Alarm outputs: dry contact outputs for integration with building management systems (BMS)

  Physical and Installation Requirements

· Enclosure: integrated into the generator canopy, or separate wall-mounted panel?

· IP rating: IP54 minimum for outdoor or dusty environments

· Cable entry: top or bottom entry; conduit size for incoming utility and outgoing load cables

· Certifications: CE marked; IEC 60947-6-1 compliance for transfer switching equipment

Applications Where ATS Is Non-Negotiable

For the following facility types, specifying a generator without ATS is not a cost saving — it is a liability. These applications require automatic switching as a functional requirement, not a preference.

Hospitals and healthcare facilities:  Life support equipment, operating theatres, ICUs, and pharmacy refrigeration cannot tolerate uncontrolled power interruptions. Most healthcare regulations mandate automatic transfer to backup power within 10 seconds of utility failure. An ATS with engine warm-up time must be specified accordingly — or a UPS must bridge the gap.

Telecommunications infrastructure:  Mobile base stations, microwave relay points, and data transmission equipment are designed for continuous operation. An uncontrolled restart can cause data corruption, call dropping, and network node failure. Telecom operators universally specify ATS as standard.

Data centers and server rooms:  Even a 200ms power gap can crash unprotected servers. Data centers typically combine UPS systems (for immediate bridging) with ATS-equipped generators (for sustained backup). The ATS must transfer before UPS batteries are depleted.

Cold chain and refrigeration:  Pharmaceutical storage, food processing, and agricultural cold chain facilities face product loss in excess of generator cost if power is not restored automatically. A manual transfer system in a refrigerated warehouse that fails at 2am is a catastrophic operational failure.

Security and access control systems:  Electronic locks, CCTV, alarms, and perimeter security depend on continuous power. A power failure that disables security systems is not just an inconvenience — it is a security breach.

ATS Options with Leading Power Generator Sets

All Leading Power generator sets from 10kW to 2,500kW are available with integrated ATS panels as a factory-fitted option. We configure and test the complete generator-ATS system at our factory in Fu'an before shipment — ensuring the transfer parameters are correctly set and the full switching sequence has been verified under load.

Our standard ATS offering includes:

· Open transition ATS: standard configuration for commercial and industrial applications

· Closed transition ATS: available for critical load applications — specify at order stage

· Current ratings from 63A to 3,200A covering our full generator range

· Adjustable transfer delay, retransfer delay, and cooldown timer

· Manual override with key switch and position indicators

· Remote start/stop and status monitoring via dry contact outputs

· GSM remote monitoring module available as additional option

· CE certified ATS panels; IEC 60947-6-1 compliant

· IP54 rated enclosures for outdoor canopy installation

  If you are specifying a generator for a hospital, data center, or telecom application, tell us at enquiry stage. We will configure the ATS transfer parameters, engine warm-up timing, and alarm outputs to match your application requirements — and provide a system test report before shipment.

Get a Generator + ATS Specification and Quotation

To receive a complete generator and ATS quotation, provide us with:

· Generator output required (kW or kVA)

· Voltage and frequency (e.g. 400V / 50Hz three-phase)

· Application type (hospital, hotel, data center, factory, construction, etc.)

· Transfer type preference: open transition (standard) or closed transition (critical loads)

· Any remote monitoring or BMS integration requirements

· Destination country

We respond to all technical enquiries within 24 hours. Our export team has supplied generator and ATS systems to buyers in over 60 countries — we understand the documentation, certifications, and configuration requirements for your market.
