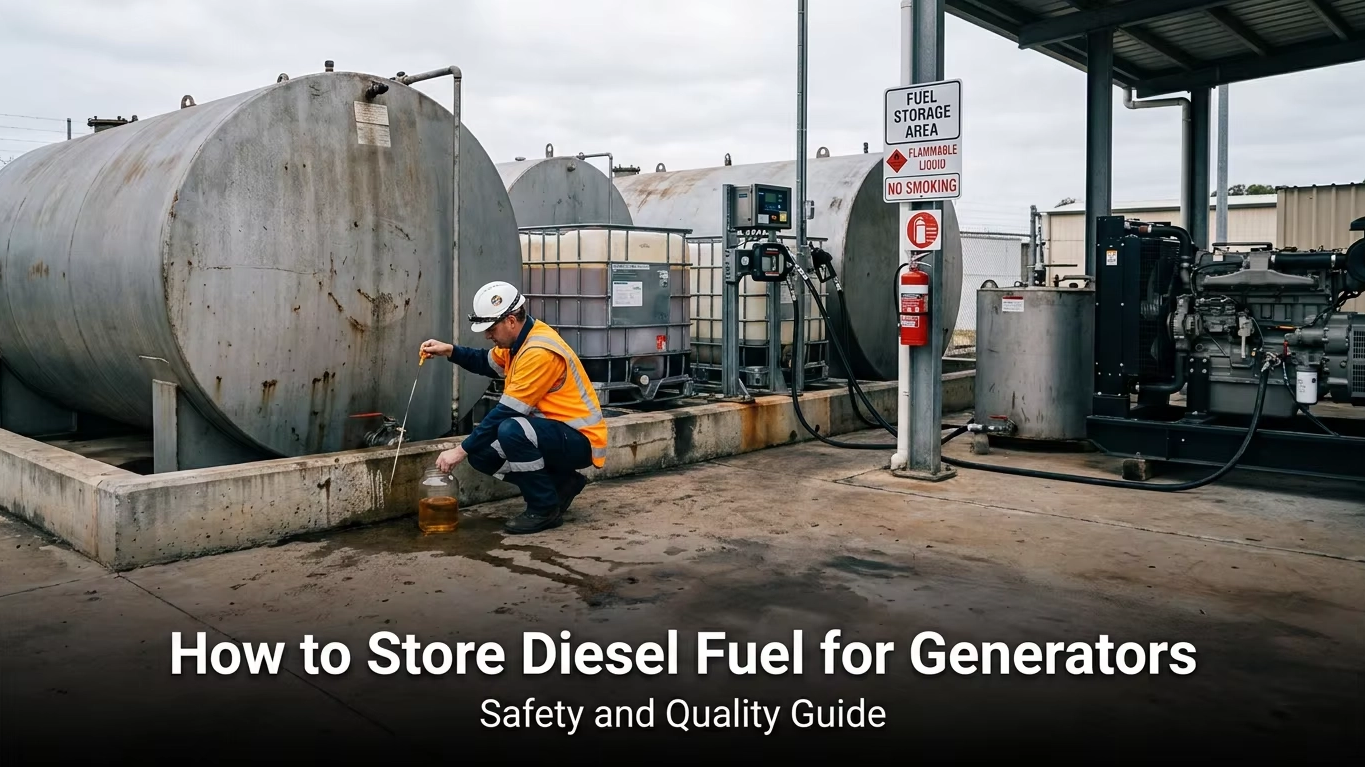

How to Store Diesel Fuel for Generators: Safety and Quality Guide

Diesel fuel is not indefinitely stable. It is a complex mixture of hydrocarbon compounds that react with oxygen, water, and microbial organisms over time -- degrading into gums, sediments, and acids that block fuel filters, damage injector nozzles, and in severe cases cause engine failure. A generator that runs perfectly on fresh fuel will break down on degraded fuel stored for 18 months in a poorly managed tank.

For commercial and industrial generator operators in developing markets -- where fuel resupply may be infrequent, where bulk storage is necessary for operational continuity, and where a generator failure has immediate and costly consequences -- diesel fuel storage management is not a minor housekeeping matter. It is a core part of generator asset management.

This guide covers everything you need to know to store diesel fuel safely and maintain its quality over extended periods: the science of fuel degradation, correct tank design and sizing, contamination prevention, and the fuel management schedule that keeps your generator running reliably.

How Diesel Fuel Degrades: The Four Mechanisms

Understanding why diesel degrades helps you design storage systems that slow each degradation pathway. Four mechanisms are responsible for virtually all diesel quality failures in storage.

  ☂  Oxidation -- The Primary Degradation Pathway

  Diesel fuel reacts with dissolved oxygen in the fuel to form gums, resins, and varnish deposits. These insoluble compounds adhere to fuel system components -- filter elements, injector nozzles, pump internals -- and cause progressive restriction and eventually blockage. Oxidation rate doubles for every 10 degree C rise in storage temperature. Hot climate storage (35-45 degrees C ambient) accelerates oxidation significantly versus temperate storage. Oxidation is the leading cause of diesel quality failure in bulk storage systems in Africa and the Middle East.

  ☂  Water Contamination -- The Microbial Enabler

  Water enters stored diesel through three routes: condensation on tank walls when temperature cycles between day and night, rainwater ingress through poorly sealed vents or damaged tank roofs, and water already present in delivered fuel. Water itself does not degrade diesel directly -- but it enables microbial growth (diesel bug) and accelerates corrosion of tank internals. A free water layer as thin as 1mm at the bottom of a storage tank is sufficient to support microbial colony growth.

  ☂  Microbial Contamination -- Diesel Bug

  Hydrocarbon-consuming bacteria and fungi (collectively called diesel bug) grow at the fuel-water interface in contaminated tanks. They produce acidic waste products that accelerate fuel oxidation, generate biomass that blocks filters rapidly, and create hydrogen sulphide that corrodes tank and fuel system metals. In tropical climates -- warm temperature, high humidity, frequent temperature cycling -- diesel bug can establish a significant colony within 4-6 weeks of water contamination. Visible symptoms: dark sludge or stringy biomass at tank bottom, filter elements turning black, fuel with sulphur smell.

  ☂  Thermal Degradation and Sediment Formation

  At storage temperatures above 40 degrees C, the long-chain hydrocarbon compounds in diesel begin to polymerise -- forming heavy sediment that settles to the tank bottom. This sediment is stirred up during fuel delivery or agitation and travels to the engine, where it blocks filters and damages injector spray patterns. Diesel stored in above-ground tanks with no insulation in a tropical climate will regularly reach 50-60 degrees C in direct sun -- well above the threshold for accelerated sediment formation.

Diesel Storage Life: Realistic Expectations by Condition

  The 'keep tank full' rule: a half-empty fuel tank has a large air space above the fuel surface. As temperature cycles between day (hot) and night (cool), moist air contracts and expands, pulling humid outside air into the tank through the vent. Each cycle deposits a small amount of condensation water on the tank walls and eventually into the fuel. A tank kept at 80-90% full has minimal air space and minimal condensation. This single practice extends diesel storage life more than any additive.

Tank Sizing: How Much Fuel Do You Actually Need On Site?

Fuel tank sizing is a calculation, not a guess. The correct tank size depends on three variables: your generator's fuel consumption rate, your required operational autonomy (how many days you can run without resupply), and your resupply interval.

Step 1 -- Calculate daily fuel consumption:  From your generator datasheet, find the fuel consumption at your average load level (typically 60-75% of rated output for prime power applications). Multiply by your average daily run hours. Example: 200kW generator, fuel consumption at 75% load = 45 litres/hour, average run = 12 hours/day. Daily consumption: 45 x 12 = 540 litres/day.

Step 2 -- Determine required autonomy:  Decide the minimum number of days you need to operate without resupply. For urban commercial sites with daily fuel access: 3-5 days autonomy is sufficient. For remote sites with weekly delivery: 10-14 days. For very remote sites (monthly delivery): 35-45 days. Add 20% safety margin to your calculated autonomy days.

Step 3 -- Calculate tank size:  Tank size (litres) = daily consumption x autonomy days x 1.2 (safety margin). Example: 540 litres/day x 14 days x 1.2 = 9,072 litres. Specify a 10,000-litre tank. Never design to run the tank to empty -- maintain a minimum 10% reserve and refuel before the reserve threshold is reached.

Tank Design: What a Correctly Specified Storage System Looks Like

  ⛽  Above-Ground vs Underground Tanks

  Above-ground tanks (ASTs) are the most common choice for generator fuel storage in developing markets -- they are cheaper to install, easier to inspect and maintain, and easier to remove or relocate. The disadvantage is heat exposure (sunlight heats the fuel) and the requirement for bunding (containment). Underground tanks (USTs) maintain more stable fuel temperature and require no surface bunding, but they are significantly more expensive to install, harder to inspect, and harder to remove. For most generator applications in Africa, Latin America, and Asia, above-ground double-walled steel tanks are the practical standard.

  ⛽  Bunding -- Spill Containment Is Mandatory

  A bund is a secondary containment structure surrounding the fuel tank that captures any spill or leak. Bunding prevents ground and groundwater contamination -- a legal requirement in most jurisdictions and a fundamental environmental protection measure. The bund capacity must be at least 110% of the largest single tank volume within it. Materials: concrete (most common), steel, or HDPE-lined earth berm. The bund floor must slope to a low point with a sump for detecting and removing accumulated rainwater or leaked fuel. Do not allow rainwater to accumulate in the bund -- pump it out regularly and test for fuel contamination before disposal.

  ⛽  Tank Venting -- Balancing Pressure and Contamination Exclusion

  Every storage tank requires a vent to allow air to enter and exit as fuel is consumed or delivered. Without a vent, the tank will either collapse under negative pressure (as fuel is drawn out) or rupture under positive pressure (during delivery). The vent must be large enough to handle the delivery flow rate without pressurising the tank. The vent outlet must be protected with a flame arrestor and a fine mesh screen to exclude insects and debris. In tropical climates, a desiccant breather vent is strongly recommended -- it removes moisture from incoming air, significantly reducing condensation water ingress.

  ⛽  Tank Fittings and Connections

  Every fitting on a storage tank is a potential leak or contamination point. Specify: fill point with lockable cap and spill containment drip tray; vent with flame arrestor; fuel outlet with isolation valve and fine mesh strainer; water drain valve at the lowest point of the tank (below the fuel outlet); level gauge (sight glass or electronic); temperature gauge (for above-ground tanks in hot climates). The fuel outlet should be positioned 75-100mm above the tank bottom -- leaving a sump volume below the outlet that captures settled water and sediment without drawing it into the fuel system.

Preventing the Six Most Common Contamination Sources

Fuel Additives: What Works and What Does Not

Fuel stabilisers (antioxidants):  Fuel stabilisers work by scavenging free radicals -- the reactive oxygen species that initiate the oxidation chain reaction. Added at delivery, a quality stabiliser (Biobor DC, Stanadyne Performance Formula, or equivalent) can double the usable storage life of diesel. Dosage: typically 1:1,000 to 1:2,000 (1 litre of stabiliser per 1,000-2,000 litres of fuel). Cost: approximately $1-3 per 1,000 litres of fuel treated. Highly cost-effective compared to the cost of injector cleaning or fuel replacement.

Biocides:  Biocides kill microbial organisms in stored diesel. Two types: soluble in fuel only (treats the hydrocarbon phase) and soluble in both fuel and water (treats the water phase where bacteria live). For established contamination, a shock dose of 1:1,000 is used to kill existing colonies, followed by a maintenance dose of 1:5,000 at each delivery. Biobor JF is the most widely used aviation and ground diesel biocide; Grotamar 82 is common in marine and generator applications. Do not use biocides as a substitute for removing free water -- kill the organisms and remove their habitat.

Cetane improvers:  Cetane improvers increase the cetane number of low-quality diesel, improving combustion quality and cold start performance. Useful in markets where diesel quality is variable. Does not prevent degradation -- addresses combustion quality only.

Water dispersants -- use with caution:  Some additives claim to disperse water into the fuel so it 'burns off' in the engine. This approach is not recommended for generator applications. Dispersed water in diesel causes combustion instability and can damage common rail injection systems. Remove water physically -- do not disperse it into the fuel.

Fuel Polishing: The Most Effective Remediation Tool

Fuel polishing is the continuous or periodic circulation of stored diesel through a multi-stage filtration and water separation system. A properly specified fuel polishing system removes free water, suspended particulates, microbial biomass, and some oxidation products -- restoring degraded fuel to usable condition and preventing further deterioration.

  Polishing vs testing: fuel polishing removes contamination; fuel testing tells you what is in the fuel before and after polishing. Both are required for a complete fuel management programme. Polishing without testing means you do not know whether the system is working. Testing without polishing means you know there is a problem but cannot fix it.

The Fuel Management Schedule: What to Do and When

Fuel Storage for Remote Generator Sites: Specific Considerations

Remote generator sites -- mining camps, telecom towers, agricultural processing facilities, off-grid communities -- face additional fuel management challenges that urban commercial installations do not.

Extended resupply intervals:  Remote sites may receive fuel every 4-12 weeks. This means fuel is routinely stored for longer than the degradation timeline without treatment. For these sites, a complete fuel management programme -- stabiliser at delivery, biocide at delivery, monthly water checks, and continuous fuel polishing -- is not optional. It is the only way to maintain fuel quality between deliveries.

Fuel theft prevention:  Fuel theft is a significant operating cost at remote sites. Measures: lockable fill points on all tanks; electronic fuel level sensors with remote monitoring (connected via GSM to a central NOC); flow meters on all dispensing points; tamper-evident seals on fuel caps; perimeter fencing around fuel storage area. For high-theft-risk sites, consider split storage -- a small day tank adjacent to the generator (locked) refilled from a larger secure bulk tank by a controlled pump.

Emergency fuel reserve:  Every remote site generator installation should maintain a defined emergency fuel reserve -- typically 20-30% of the operating tank volume -- that is only accessed when the normal operating level falls to the reserve threshold. This reserve provides time to arrange emergency resupply without the generator running dry and triggering an emergency shutdown that may damage the engine.

  ✔  The complete remote site fuel management specification

  Bulk storage tank: double-walled steel, correctly sized for resupply interval x 1.3. Bunding: concrete, 110% of tank volume. Day tank: 24-48 hour capacity, adjacent to generator. Desiccant breather vents on all tanks. Fuel polishing system: continuous circulation at 10% of tank volume per day. Fuel additives: stabiliser and biocide at every delivery. Monitoring: electronic level sensor with GSM remote reporting. Testing: monthly visual + water check; 6-monthly laboratory analysis. Theft prevention: lockable fill and dispensing points; flow meter; perimeter fence.

Leading Power Support for Fuel System Design

Diesel generator reliability depends equally on the machine and the fuel it runs on. We provide fuel system design guidance for all Leading Power generator installations -- from simple sub-base tank configurations for urban commercial sites to complete bulk storage and polishing systems for remote prime power installations.

· Sub-base tank sizing: 300-1,000 litre integral tanks on all generator sets -- sized to provide minimum 8-24 hours autonomy at rated load

· Bulk tank specifications: we provide storage tank sizing calculations for all Leading Power generator quotations -- matched to your resupply interval and daily consumption

· Day tank connection kit: fuel supply pipe, valve, and float-valve day tank fill system available for all generator models

· Fuel polishing system recommendation: we specify polishing systems sized to the bulk tank volume and contamination risk level of your site

· Remote fuel monitoring: fuel level sensor output available on all DSE 7320 and DSE 8610 control panels -- connects to remote monitoring systems

· Fuel quality testing: we can recommend accredited fuel testing laboratories in major markets in Africa, Middle East, and Asia

· Documentation: fuel management schedule and maintenance guide provided with every generator system installation package

· 24-hour technical response -- send us your site details (generator size, resupply interval, site location) and we will recommend the correct fuel storage system
