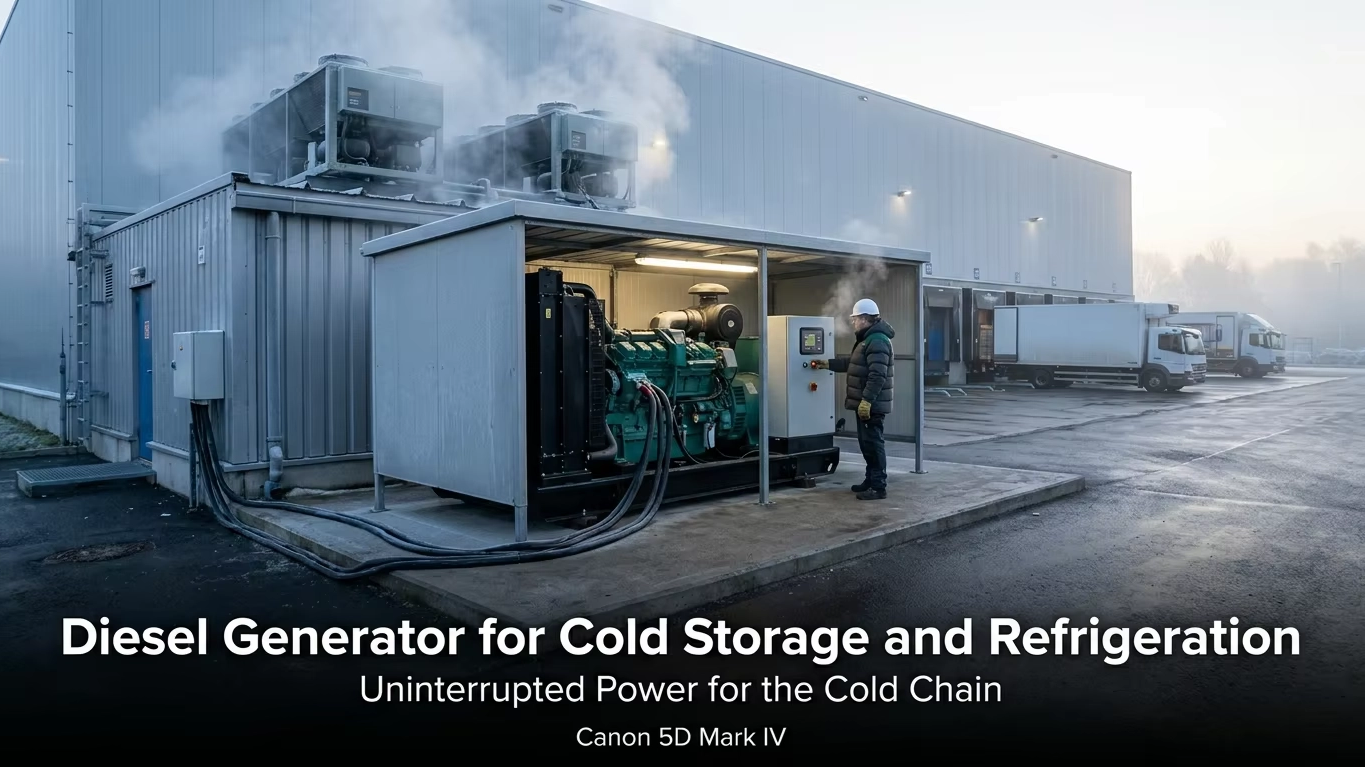

Diesel Generator for Cold Storage and Refrigeration: Sizing, ATS, and Specification Guide

A power failure in a cold storage facility is not a disruption — it is a catastrophe. A 500-tonne cold store of frozen fish in Mombasa loses its entire inventory if the temperature rises above -12°C for more than 4–6 hours. A pharmaceutical cold room holding vaccines loses its contents — and potentially its licence — if the temperature exceeds +8°C even briefly. A fresh produce packing house in Nairobi can lose an entire day's harvest if the pre-cooling system goes down for 2 hours in summer heat.

Cold storage operators in developing markets face a specific challenge: they need 100% power availability in markets where grid power is available for only 12–18 hours per day. That means the diesel generator is not an emergency backup — it is the primary power source for a significant part of every operating day. The generator specification must reflect this reality.

This guide covers everything cold storage operators, cold chain logistics companies, pharmaceutical distributors, and food processing facilities need to know about generator selection and specification for refrigeration applications.

Why Refrigeration Loads Are Different from Other Generator Applications

Refrigeration equipment creates two generator challenges that most other commercial loads do not: extremely high starting surges from compressor motors, and sensitivity to voltage quality that other loads can tolerate but refrigeration equipment cannot.

  ❄  The Compressor Starting Surge — The Critical Sizing Challenge

  A refrigeration compressor motor draws 500–700% of its running current at the moment of starting. A compressor with a 30 kW running load produces a starting surge of 150–210 kW. If the generator cannot supply this surge without voltage collapsing below 75–80% of nominal, the compressor motor will either fail to start or stall under load — causing the motor to overheat rapidly. The generator must be sized to handle the largest compressor starting surge as an additional load on top of all other running loads.

  ❄  Compressor Cycling — The Generator Must Handle Repeated Starts

  Refrigeration compressors do not run continuously at constant load. They cycle on and off based on thermostat demand — typically starting every 15–45 minutes in a well-insulated cold room, or every 5–10 minutes in a hot ambient or poorly insulated room. Each start is a new starting surge event. The generator must handle repeated compressor starts throughout its operating cycle without voltage instability. This cycling pattern also means the generator's load varies significantly — from base load (fans, lighting, controls) to full compressor load and back — dozens of times per day.

  ❄  Voltage Sensitivity — Refrigeration Controllers Are Not Forgiving

  Modern refrigeration systems use electronic controllers, variable speed compressor drives, and digital thermostats. These components are sensitive to voltage quality in ways that simple resistive loads (heaters, lighting) are not. Voltage transients during compressor starting — dips below 85% of nominal that last more than 100 milliseconds — can cause electronic controllers to reset, lock out compressors on protective fault, or in severe cases, damage controller boards. This drives a requirement for tighter voltage regulation and faster AVR response than general commercial applications.

Sizing a Generator for Cold Storage: The Correct Methodology

Cold storage generator sizing requires three separate calculations that are combined to produce the final specified output. Many buyers make the mistake of sizing only for running load — and then discover their generator cannot start the largest compressor.

  1  Calculate Total Running Load

  Sum all loads that run simultaneously at steady state: all compressor running loads (kW), evaporator fans, condenser fans, lighting, forklift battery charging, packing area equipment, and administration loads. Apply a diversity factor of 0.85–0.95 for the compressor running loads if not all compressors run simultaneously at peak demand.

  2  Calculate the Largest Compressor Starting Surge

  Identify the largest single compressor motor in the facility. Multiply its running kW by 6 (for DOL starting without soft-starter) or by 2 (for soft-starter or VFD starting). This is the additional kW the generator must supply for 3–8 seconds at the moment that compressor starts. The generator must carry this surge on top of all other running loads without voltage collapsing below 80% of nominal.

  3  Size the Generator with Correct Headroom

  The generator prime power rating must be at least: (total running load) + (largest compressor starting surge) × 0.3. The factor of 0.3 reflects that the generator does not need to supply the full starting surge at rated output — the alternator's subtransient reactance allows it to supply brief surges above rated current. As a practical rule: size the generator so that the largest compressor's starting surge does not exceed 30% of the generator's kVA rating.

  Sizing example: cold store with 3 × 15 kW compressors (running load 45 kW total), evaporator fans 8 kW, lighting and controls 5 kW. Total running load: 58 kW. Largest single compressor start (DOL): 15 kW × 6 = 90 kW surge. Generator sizing: 58 kW running + 90 kW surge cannot exceed 30% of generator kVA. Required generator: 90 ÷ 0.30 = 300 kVA (240 kW prime) minimum. With soft-starters on all compressors (reducing surge to 2×): 15 × 2 = 30 kW surge — required generator: 30 ÷ 0.30 = 100 kVA (80 kW prime). Soft-starters reduce required generator by 65% at this facility.

Compressor Starting: DOL vs Soft-Starter vs VFD

  Recommendation for cold storage procurement: specify soft-starters on all compressors above 7.5 kW as standard. The cost ($400–$2,000 per compressor) is recovered immediately in reduced generator size — typically saving $5,000–$25,000 on the generator purchase depending on facility scale. Soft-starters also extend compressor motor life by reducing mechanical stress at each start.

ATS Transfer Time: The Specification That Protects Your Stock

The Automatic Transfer Switch changeover time — from grid failure detection to generator running and supplying load — determines the temperature excursion your refrigeration equipment experiences during a power failure. This is one of the most critical specifications for any cold storage generator system.

  ⚠  ATS Transfer Time Is Not Generator Start Time

  Many buyers specify generator start time (8–10 seconds) and assume the ATS will transfer within that window. In practice, the ATS transfer sequence includes: mains failure detection delay (0.5–3 seconds, adjustable), generator start signal, generator cranking and firing, engine speed settling, voltage and frequency stabilisation, ATS transfer relay operation, and load application. Total transfer time is typically 12–20 seconds from mains failure to load supplied — not 10 seconds. For frozen storage and pharmaceutical cold chain, this gap is significant. Bridge it with a small UPS on compressor controllers and monitoring systems.

  ✔  UPS Bridging for Compressor Controllers — A Specific Recommendation

  Install a small UPS (1–3 kVA) on the cold room's electronic controller, thermostat display, and alarm system — not on the compressor motor itself. The UPS keeps the controller alive and in its operating state during the 15–20 second ATS transfer. When the generator comes online and the compressor restarts, the controller resumes from its last operating state without the reset-and-lockout sequence that causes many electronic refrigeration controllers to delay restart by 3–5 minutes after a power interruption. This one measure can prevent $50,000+ of product loss in a large cold store.

Generator Sizing Reference: Cold Storage Applications

  Small Cold Room — Retail, Restaurant, Small Distribution (10–50 m³)

  Load: 5–25 kW compressor running load  |  Generator: 20–60 kVA prime (with soft-starter) / 60–150 kVA (DOL)  |  ATS transfer: <15 seconds
  Single compressor unit; soft-starter strongly recommended. Often shared with general building load — size for combined load. Perkins 403/404 or Cummins 4BT engine range.

  Medium Cold Store — Agri-Processing, Wholesale Distribution (100–500 m³)

  Load: 30–120 kW compressor running load
(2–4 compressor units)  |  Generator: 80–200 kVA prime (with soft-starters)
/ 250–500 kVA (DOL)  |  ATS transfer: <15 seconds
  Multiple compressor units cycling; sequence starting to stagger surges. ATS with load sequencing controller — start compressors 30 seconds apart after generator stabilises. Perkins 1006 or Cummins 6BT/6CT.

  Large Cold Store — Export Packing House, Supermarket DC (1,000–5,000 m³)

  Load: 100–400 kW compressor running load
(multiple zones, blast freeze + chilled)  |  Generator: 250–800 kVA prime (with soft-starters)  |  ATS transfer: <10 seconds — UPS on controllers
  Multiple temperature zones; zone-by-zone load sequencing on ATS restoration. Consider parallel generator configuration (N+1) for facilities above 400 kW. Cummins QSL9 or QSZ13.

  Pharmaceutical Cold Chain Facility

  Load: 20–100 kW; highly stable load  |  Generator: 60–200 kVA prime — quality-grade
Stamford alternator, ±1% voltage  |  ATS transfer: <10 seconds — UPS on all monitoring
and logging systems mandatory
  Voltage stability is paramount — pharmaceutical regulatory requirements specify temperature excursion limits. High-quality alternator with electronic AVR and tight voltage regulation essential. Consider N+1 redundancy for critical pharma storage.

  Fish and Seafood Processing Plant

  Load: 100–600 kW (blast freeze, IQF,
chilled storage, processing)  |  Generator: 250–1,200 kVA prime  |  ATS transfer: <15 seconds
  Blast freezers have very high compressor kW — largest surge loads in cold storage category. Soft-starters or VFDs mandatory. High ambient temperature at many coastal processing locations — confirm cooling rating at 40–45°C ambient.

Voltage Stability: Why Generator Quality Matters for Refrigeration

Standard commercial generators — particularly those with cheaper Chinese OEM alternators — have voltage regulation of ±2.5% to ±5% and AVR response times of 300–500 milliseconds. For lighting and heating loads, this is acceptable. For electronic refrigeration controllers and variable speed compressor drives, it is not.

Key Specification Checklist for Cold Storage Generators

Leading Power Cold Storage Generator Configurations

We supply prime-rated diesel generator sets to cold storage facilities, fish processing plants, pharmaceutical distributors, and supermarket distribution centres across Africa, the Middle East, and Southeast Asia.

· Engine: Cummins or Perkins — prime rated; sized to application with starting surge calculation included in quotation

· Alternator: Stamford UCI or Leroy Somer LSA series — ±1% voltage regulation; electronic AVR with <100ms response time

· Soft-starter advice: we specify and recommend soft-starters for all compressor loads at quotation stage — reducing generator size and protecting compressor motors

· ATS interface: DSE 7320 with dry-contact load sequencing outputs — staggered compressor restart sequence configurable

· Load sequencing: pre-configured restart delay outputs for up to 4 compressor groups — prevents simultaneous surge on restoration

· UPS recommendation: we specify a small UPS for controller bridging as part of every cold storage generator proposal

· Fuel tank: 500-litre sub-base standard; 1,000-litre extended tank available for facilities requiring 12+ hour autonomy

· Ambient rating: cooling system rated to 45°C for tropical cold storage installations

· Factory test: load bank test at 100% and 110% rated output; transient response test with step load — voltage recovery time documented

· CE certified; 12-month warranty — prime power use accepted; 24-hour quotation response

To receive a sizing recommendation and quotation, provide: total compressor running load (kW), number and size of compressor units, starting method (DOL or soft-starter), temperature zones, site ambient temperature, and destination country. We return a full sizing calculation, generator specification, and FOB price within 24 hours.
