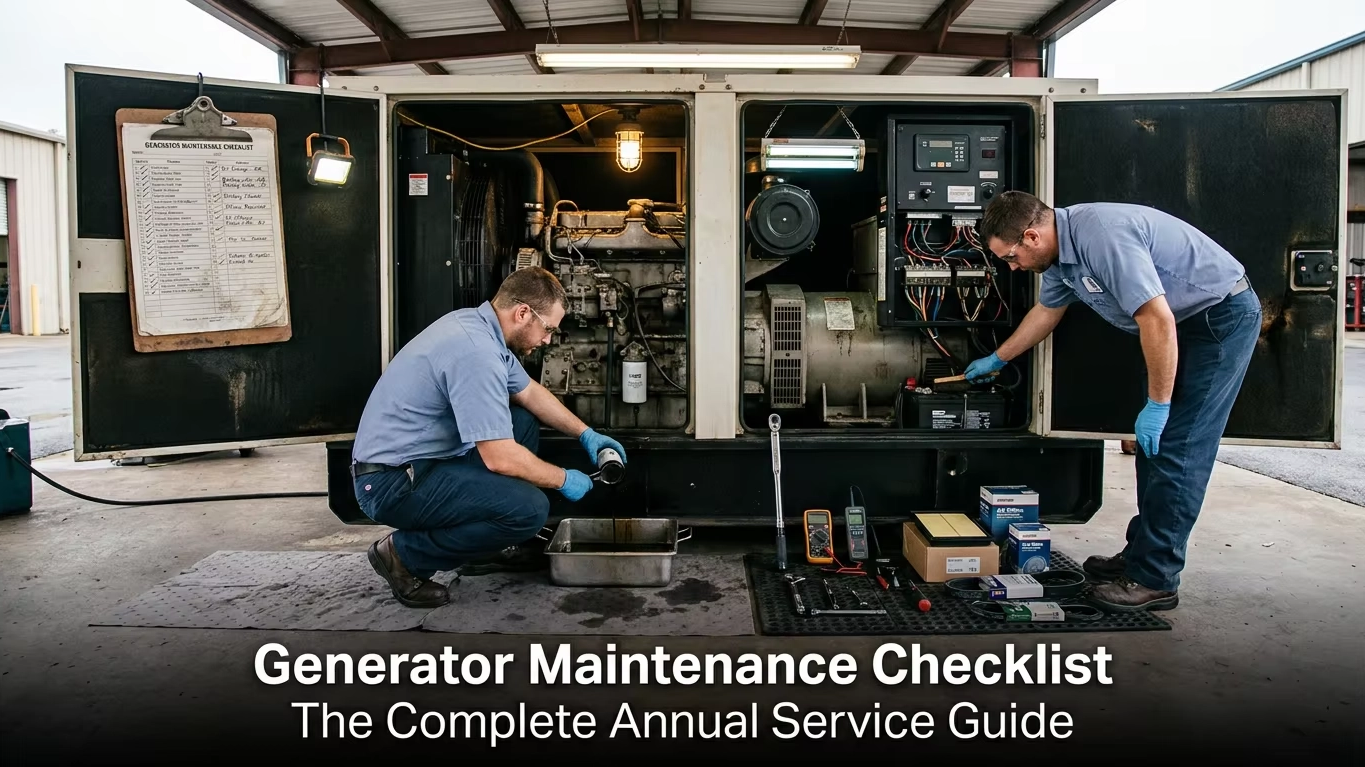

Generator Maintenance Checklist: The Complete Annual Service Guide

A diesel generator that is properly maintained will run for 20,000 hours or more before requiring a major engine overhaul. A generator that is poorly maintained -- skipped oil changes, ignored coolant, neglected air filters -- may fail catastrophically within 3,000-5,000 hours. The difference in total cost between these two scenarios is not the cost of maintenance; it is the cost of an engine rebuild, plus the cost of production downtime, plus the cost of emergency repair at a time and place that is almost certainly inconvenient.

For commercial and industrial generator operators, preventive maintenance is not an expense -- it is the cheapest insurance policy available for a critical asset. This guide provides the complete maintenance checklist across every service interval, the parts you need to stock, and the cost benchmarks to plan your maintenance budget.

The checklists below apply to diesel generator sets from 20kW to 2,500kW with Cummins, Perkins, Volvo Penta, or Baudouin engines. Engine-specific service intervals may vary -- always cross-reference with your engine manufacturer's Operation and Maintenance Manual for your specific engine model.

The Maintenance Interval Framework: Hours vs Calendar

Diesel generator maintenance is scheduled on two parallel tracks: engine operating hours and calendar time. Both apply simultaneously -- whichever threshold is reached first triggers the service.

  ⚠  Calendar intervals matter even for low-hour generators

  A standby generator that runs only 100 hours per year still needs a 12-month service -- not just a 1,000-hour service. Engine oil degrades chemically over time regardless of run hours. Coolant SCA depletes with time. Rubber hoses, belts, and gaskets harden and crack with age. Battery electrolyte evaporates. A generator serviced only on hours accumulates calendar-based degradation that will cause a failure at the worst possible moment -- during an outage when you actually need it.

Daily Inspection Checklist

Daily checks take 5-10 minutes. They catch developing problems before they become failures. Assign daily inspection to a named person -- it must not be everyone's responsibility, or it will be no one's.

  DAILY INSPECTION  |  Engine hours: Every 8-12 operating hours  |  Calendar: Every operating day

  ENGINE FLUIDS

     ☐  Engine oil level -- check dipstick; top up if below MIN mark; note if consumption increased

     ☐  Coolant level in header tank -- should be between MIN and MAX marks; never open when hot

     ☐  Fuel level in day tank or sub-base tank -- record level; calculate daily consumption

     ☐  Check for fuel, oil, or coolant leaks on engine, hoses, and under generator base

  RUNNING PARAMETERS (check while generator is running)

     ☐  Oil pressure -- confirm within normal range on panel gauge or DSE display (typically 2.5-5.0 bar)

     ☐  Coolant temperature -- confirm within normal range (typically 82-95 deg C); alert if approaching alarm threshold

     ☐  Output voltage -- confirm within 2% of rated voltage on all three phases

     ☐  Output frequency -- confirm 50.0 Hz or 60.0 Hz as specified; alert if hunting

     ☐  Battery charging voltage -- confirm 13.8-14.4V (12V system) or 27.6-28.8V (24V system)

     ☐  Exhaust colour -- should be light grey or nearly clear at rated load; black = fuel-rich; blue = oil burning

  VISUAL INSPECTION

     ☐  Air filter restriction indicator (if fitted) -- check not in red zone

     ☐  No unusual noises from engine, turbocharger, or alternator

     ☐  No unusual vibration beyond normal operating level

     ☐  Control panel -- confirm no active alarms or warning lights

     ☐  Exhaust system -- confirm no leaks at joints or silencer; no excessive soot deposits

Weekly Inspection Checklist

  WEEKLY INSPECTION  |  Engine hours: 50-60 operating hours  |  Calendar: Every 7 days

  ENGINE AND FLUIDS

     ☐  Engine oil condition -- draw small sample; check colour and smell; milky = coolant contamination; black = severe oxidation

     ☐  Coolant condition -- check colour; should be clean green or blue; brown/rusty = corrosion; oily = head gasket issue

     ☐  Fuel system -- inspect fuel filter bowl/housing for water or sediment; drain water separator if fitted

     ☐  Fuel tank water bottom check (water-finding paste on dip stick for bulk tanks)

     ☐  Check all hose clips and connections for tightness and signs of seepage

  MECHANICAL

     ☐  Belt condition and tension -- V-belts should deflect 10-15mm under moderate finger pressure at midspan

     ☐  Anti-vibration mounts -- inspect for cracking, collapse, or oil contamination

     ☐  Air filter -- clean pre-cleaner element if fitted; check restriction indicator

     ☐  Exhaust system -- check flexible section for cracking; check all flange joints

     ☐  Generator set mounting bolts -- check for loosening; re-torque if required

  ELECTRICAL AND CONTROL

     ☐  Battery terminals -- clean if corroded; apply petroleum jelly to terminal posts

     ☐  Battery electrolyte level (non-sealed batteries) -- top up with distilled water if below plates

     ☐  Auto-start test -- simulate mains failure; confirm generator starts and transfers load within specified time

     ☐  Control panel -- review fault log for any recorded alarms since last inspection

     ☐  Cable connections -- visual check for chafing, overheating signs (discolouration), or loose terminals

250-Hour Service Checklist (Minor Service)

The 250-hour service is the most frequent scheduled maintenance event. Correct execution of this service is the single most important factor in engine longevity. Budget 2-4 hours for a 100-250kW generator; 4-6 hours for larger sets.

  250-HOUR SERVICE (MINOR)  |  Engine hours: 250 operating hours  |  Calendar: 3 months -- whichever first

  ENGINE OIL AND FILTERS

     ☐  Drain engine oil (warm engine -- run for 5 minutes before draining)

     ☐  Replace engine oil filter(s) -- pre-fill new filter with clean oil before fitting

     ☐  Refill with correct grade and quantity of engine oil (refer to manufacturer spec for grade)

     ☐  Run engine 2 minutes; shut down; recheck oil level; check for leaks at drain plug and filter

     ☐  Record oil change in service log with date, hours, and oil grade used

  FUEL SYSTEM

     ☐  Replace primary fuel filter/water separator element

     ☐  Replace secondary fuel filter element (if fitted separately)

     ☐  Bleed fuel system of air after filter change (follow engine-specific bleed procedure)

     ☐  Check fuel injector return lines and connections for leaks

     ☐  Inspect fuel lift pump (if mechanical) for leaks and correct operation

  AIR INTAKE

     ☐  Inspect air filter element -- replace if restriction indicator in red zone or element visibly contaminated

     ☐  Clean air filter housing interior -- remove all dust and debris

     ☐  Inspect air intake hose between filter and turbocharger for cracks or loose clamps

     ☐  Check turbocharger intake and outlet connections for security

  COOLING SYSTEM

     ☐  Check coolant level and top up if required

     ☐  Test coolant SCA (Supplemental Coolant Additive) concentration with test strips or refractometer

     ☐  Inspect radiator fins -- clean with compressed air or low-pressure water if blocked with debris

     ☐  Check all coolant hoses for hardening, cracking, or swelling

     ☐  Inspect radiator cap -- replace if seal is hardened or pressure test fails

  ELECTRICAL AND SAFETY

     ☐  Battery condition test -- load test or conductance test; replace if capacity below 70% of rated

     ☐  Check all warning and protection system inputs (oil pressure switch, high temp sensor, overspeed)

     ☐  Test emergency stop function

     ☐  Inspect all cable terminals -- tighten as required

     ☐  Record all findings in service log

  Parts to stock for 250-hour service (100kW generator example): engine oil (approx 18-25 litres depending on engine); oil filter x1; primary fuel filter x1; secondary fuel filter x1; air filter element x1; coolant SCA additive (as required by test result). Total parts cost: approximately $80-180 depending on engine brand and supplier. Service labour: 2-3 hours. Total service cost: $150-350 at commercial labour rates.

500-Hour Service Checklist (Standard Service)

The 500-hour service builds on the 250-hour service with additional checks on systems that have longer service lives but still require periodic attention.

  500-HOUR SERVICE (STANDARD)  |  Engine hours: 500 operating hours  |  Calendar: 6 months -- whichever first

  ALL 250-HOUR ITEMS PLUS:

     ☐  Coolant SCA treatment -- add measured dose based on test result; or full coolant change if degraded

     ☐  Thermostat function test -- confirm correct opening temperature with calibrated thermometer

     ☐  Water pump inspection -- check for bearing play and shaft seal seepage

     ☐  Injector return line O-rings -- inspect and replace if showing hardening or cracking

     ☐  Valve cover gasket -- inspect for oil seepage; replace if leaking

     ☐  Engine breather/crankcase ventilation system -- clean or replace breather filter element

  MECHANICAL -- BELTS AND DRIVES

     ☐  Measure belt tension with tension gauge (not finger pressure) -- set to manufacturer specification

     ☐  Inspect belt condition -- check for fraying, glazing, cracking, or uneven wear on drive face

     ☐  Replace belt if any wear or cracking is visible -- do not wait for failure

     ☐  Inspect drive pulleys for alignment and wear -- misaligned pulleys cause rapid belt failure

     ☐  Check flexible coupling between engine and alternator for wear or cracking

  ALTERNATOR

     ☐  Megger test alternator insulation resistance -- minimum 1 MOhm winding to earth at 500V DC

     ☐  Clean alternator air intake screens -- remove all dust and debris

     ☐  Inspect alternator end shield bearings for overheating (hand-warm is normal; hot = bearing failure imminent)

     ☐  Apply grease to bearing nipples if fitted (per manufacturer specification -- do not over-grease)

     ☐  Check AVR (Automatic Voltage Regulator) connections and settings -- verify voltage set point

     ☐  Inspect slip rings and brushes (if wound field alternator) -- check brush length and contact surface

  CONTROL PANEL AND ELECTRICAL

     ☐  Download and review complete fault log from DSE or ComAp panel

     ☐  Check all protection relay settings against commissioning record -- confirm no drift

     ☐  Test ATS (Automatic Transfer Switch) complete cycle -- mains fail, generator start, transfer, retransfer

     ☐  Inspect all control panel wiring connections -- tighten any loose terminals

     ☐  Check earthing connections -- clean and retighten main earth bonding points

1,000-Hour / Annual Service Checklist (Major Service)

The 1,000-hour service is the most comprehensive scheduled maintenance event. It should be performed by a trained engine technician with access to engine-specific tooling. Budget 6-10 hours for a 100-250kW generator.

  1,000-HOUR SERVICE (MAJOR / ANNUAL)  |  Engine hours: 1,000 operating hours  |  Calendar: 12 months -- whichever first

  ALL 500-HOUR ITEMS PLUS:

     ☐  Valve clearance check and adjustment -- refer to engine manual for correct intake and exhaust clearances

     ☐  Injector inspection -- remove and bench-test all injectors; check opening pressure and spray pattern

     ☐  Replace any injectors outside specification; clean and re-test borderline injectors

     ☐  Turbocharger inspection -- check shaft end-float and radial play; inspect compressor and turbine wheels for damage

     ☐  Turbocharger oil feed and return lines -- inspect for restriction or leakage

     ☐  Full coolant change (if not changed at 500-hour service or within 2 years)

  FUEL SYSTEM -- DEEP INSPECTION

     ☐  High-pressure fuel lines (common rail engines) -- inspect for chafing and micro-cracks

     ☐  Fuel tank inspection -- check for water and sediment; arrange cleaning if sediment significant

     ☐  Fuel polishing filter elements -- replace regardless of condition

     ☐  Injector copper crush washers -- replace at injector reinstallation

     ☐  Fuel system high-pressure test (common rail) -- confirm rail pressure per engine spec

  ENGINE EXTERNAL -- FULL INSPECTION

     ☐  All engine external bolts and studs -- check torque on critical fixings (manifold, turbo, flywheel housing)

     ☐  Engine mounts and anti-vibration pads -- replace if collapsed or oil-contaminated

     ☐  Exhaust manifold -- inspect for cracks; check all joint gaskets for leakage

     ☐  Intercooler (if fitted) -- inspect for external fin blockage and internal coolant/oil contamination

     ☐  Engine breather system -- clean or replace all breather elements and hoses

  ALTERNATOR -- FULL SERVICE

     ☐  Full insulation resistance test -- all windings; record results in service log

     ☐  Alternator bearing replacement (if hours-based -- check manufacturer recommendation)

     ☐  Full visual inspection of all winding end-turns -- check for discolouration or mechanical damage

     ☐  AVR calibration check -- confirm output voltage and voltage regulation against specification

     ☐  Main terminal connections -- inspect, clean, and retorque all main power connections

  COMPLETE SYSTEM TEST AFTER SERVICE

     ☐  Cold start test -- confirm start within 10 seconds from cold engine

     ☐  No-load run -- 15 minutes at rated speed; confirm stable voltage and frequency

     ☐  Step load test -- apply 25%, 50%, 75%, 100% of rated load; record voltage and frequency at each step

     ☐  Full load run -- 60 minutes at 100% rated load; record all parameters every 15 minutes

     ☐  Exhaust smoke observation -- confirm clean combustion at all load levels

     ☐  Complete service record -- sign off service log with technician name, date, hours, and all findings

Parts and Consumables: What to Stock On Site

  Annual maintenance cost benchmark: for a 100kW Cummins or Perkins generator running 3,000 hours per year (prime power application), budget $1,200-1,800 per year for parts and consumables. Add labour cost of $400-800 per year if using a contracted technician. Total annual maintenance cost: $1,600-2,600/year -- approximately 10-15% of the generator purchase price. Every dollar spent on planned maintenance saves $5-15 in unplanned repair costs.

Maintenance Records: Why Documentation Is Not Optional

A generator with a complete, accurate service history is worth significantly more than an identical generator with no records -- in resale value, in warranty claim support, and in the ability to diagnose developing problems before they cause failures.

What every service record must include:  Date of service; engine hours at service; service level performed (250hr, 500hr, 1000hr); all parts replaced (with part numbers); oil grade and quantity; any abnormal findings noted during inspection; test results (oil pressure, voltage, frequency, insulation resistance); name and qualification of technician performing service.

Logbook format:  A physical logbook stored with the generator is the minimum standard. Each service generates one page entry. The logbook must be available for inspection by warranty claim assessors -- a warranty claim supported by a complete service history is almost always successful; a claim without records is frequently rejected. DSE and ComAp control panels provide electronic hour logs and fault records -- download and archive these alongside the physical service log.

Digital maintenance management:  For operators with multiple generators, a simple spreadsheet tracking each unit's service history, due service dates, and parts consumption gives visibility across the fleet. Commercial generator management software (GenLink, Cummins PowerCommand, or simple CMMS systems) can automate service reminders and generate service reports. For fleets above 10 units, a CMMS system pays for itself within 12 months by eliminating missed services.

Leading Power Technical Support and Service Documentation

All Leading Power generator sets are supplied with a complete technical documentation package that supports the maintenance programme described in this guide.

· Operation and Maintenance Manual -- engine-specific service schedule, fluid specifications, torque settings, and fault codes

· Parts catalogue -- complete illustrated parts list with part numbers for all serviceable components

· Wiring diagram -- complete electrical schematic for control panel and generator wiring

· First service kit -- oil, filters, and coolant SCA for the 250-hour first service, packed with every generator

· Service log book -- pre-formatted paper logbook supplied with every generator for on-site record keeping

· DSE panel guide -- operation guide for the DSE 7320 control panel, including fault code list and parameter settings

· Warranty documentation -- 12-month warranty certificate with claim procedure and authorised service network contacts

· Technical support -- email and phone support from our engineering team for service questions; response within 24 hours

· Service contractor recommendation -- for buyers without in-house technical staff, we can recommend Cummins or Perkins authorised service contractors in your country
